DAB receivers for industrial applications

Below, a selection of DAB receivers, meeting industrial requirements, is pictured.
Please contact us for details.

CDR20 receiver board

  • CDR20 is our state of the art, high performance, low-cost DAB data service receiver board.
  • Usage with industrial DAB applications, primarily DGPS, public transportation and billboard control.

  • See the CDR20 web section for details.

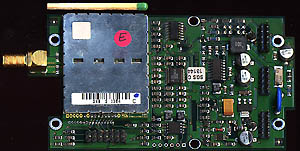

CDR20 board


Philips DAB 752 professional receiver

Philips DAB 752 professional receiver

Legacy receivers
Pictured below are some boards that were used in earlier industrial DAB projects where the Esslinger team was involved.

Panasonic-based receiver


  • MN66720 channel decoder

  • Panasonic's DCCI command set

  • RS-232 interface

  • 2 audio outputs plus 2 data streams

  • Supported by our DAB Software Toolkit.

Panasonic-based DAB receiver module

Grundig-based receiver


  • DAB300 receiver module

  • DSP-based RDI decoder module,
    provides up to 32 independent data streams (packets, PAD, streammode, FIC)

  • Full ensemble decoding capability (1.6 MBit/s)

  • RS-232 interface

  • Fully supported by our DAB Software Toolkit.

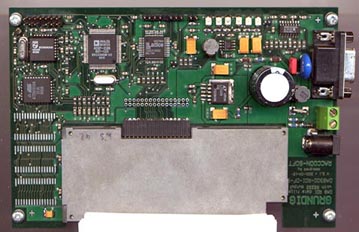

Grundig industrial DAB receiver

Philips SAA3500-based receivers


  • One of the earliest 3rd generation DAB channel demodulators

  • Used in e.g. Philips, Grundig and Terratec DAB receivers

  • Data service access via RDI output

  • Supported by our DAB Software Toolkit.

Philips SAA3500-based DAB board
